Brake Shoe Repair Kits
OE-Level Performance
For the Most Demanding
For the Most Demanding
Duty Cycles
At Winlong, we don't just copy parts; we engineer them. Our brake shoe repair kits are developed by North American brake system experts to ensure 100% compatibility with leading axle systems.
From standard road use to Severe Duty editions, our hardware is tested to twice the expected service life, providing the reliability that commercial fleets demand.
Schedule Factory Tour
Why Choose Winlong?
The Winlong Difference
Four pillars that make us the preferred brake hardware supplier for fleet managers and commercial distributors.
Six Sigma Excellence
Quality performance ensures fewer than 5 nonconforming parts per million produced. Every spring, pin, and roller meets OE specifications.
Severe Duty Editions
Available for heavy-haul and high-heat environments where standard kits fail. Reinforced springs tested to 1,000,000+ cycles.
FMVSS Validated
Periodically tested to meet or exceed U.S. Federal Motor Vehicle Safety Standards. Full documentation available for audits.
60+ Years Expertise
Backed by decades of combined brake system engineering know-how from OE partnerships and aftermarket innovation.
Brake Shoe Repair Kit Series
Complete hardware kits engineered for seamless OE fitment across major axle platforms.
01 Targeting: Distributors — High Inventory Turnover
Meritor Q-Brake & Q+ Systems
Coverage: 15″ Q-Brake, 16.5″ Q & Q+
Engineered for Meritor's industry-leading Q-Brake and Q+ platforms. Our kits support the full range from standard 15″ systems to heavy-duty 16.5″ configurations, ensuring your fleet has the exact hardware match for seamless installation.
- Heat-Treated Anchor Pins — Precision-machined for smooth shoe actuation and reduced friction wear.
- OE-Grade Rollers — Tested to 500,000+ cycles to prevent binding and ensure consistent brake release.
- FMSI Cross-Referenced — Compatible with all major shoe numbers: 4515Q, 1308Q, and more.
WL1308Q, WL4515Q
SEVERE DUTY AVAILABLE
MERITORQ-SERIES
02 Targeting: Long-Haul Fleets — Extended Service Intervals
Eaton ES Series
Extended Service Kits for High-Mileage Operations
Designed specifically for Eaton's Extended Service brake platforms. Our precision-fit springs and bushings are engineered for the high-mileage demands of long-haul commercial operations, delivering consistent performance across extended service intervals.
- Precision Return Springs — Manufactured to OE spring rate specs for proper shoe retraction and zero brake drag.
- High-Mileage Bushings — Reinforced polymer bushings resist wear in high-vibration environments.
- 1M+ Cycle Testing — Every spring tested to 1,000,000 actuation cycles for long-term reliability.
WL4707E, WL4709E-48
1ST & 2ND GEN ES
1M+CYCLES
03 Targeting: Vocational & Severe Duty Applications
INTRAAX® & Steer/Drive Axle Systems
Comprehensive Coverage for Hendrickson & Dana/Spicer
Comprehensive coverage for Hendrickson's advanced INTRAAX® systems and Dana/Spicer conventional axle platforms. Specialized coatings resist rust and road chemicals common in winter fleet operations and coastal environments.
- Corrosion-Resistant Coatings — E-coat and zinc dichromate finishes for harsh weather and chemical exposure.
- Severe Duty Available — Reinforced hardware for vocational applications: dump trucks, mixers, refuse haulers.
- Complete Kit Integrity — Every component lot-tested together to ensure balanced performance as a system.
WL4707, WL4311
CUSTOM CONFIGS
HENDRICKSONINTRAAX
Our Brake Shoe Products
High-quality brake shoe hardware and accessories engineered for reliability and performance.

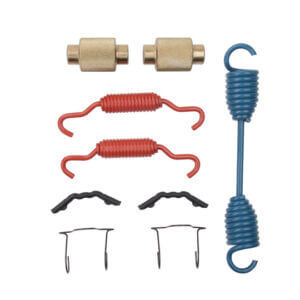

ArwinMeritor 16 1/2 Q and Q Plus brake WL4515Q-883

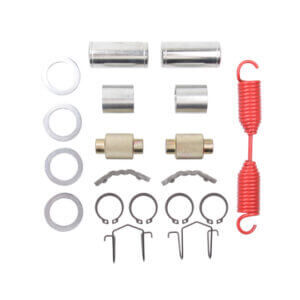

Rockwell 16.5 Universal P brake WL4515P
Dana Spicer 12.25 U brake w. Fast Change, 1196 and newer WL1225D-54

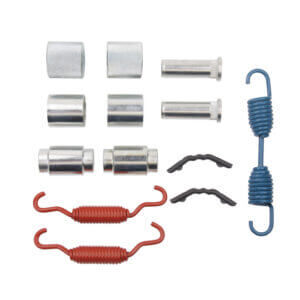

Dexter PQ 12.25 Brake WL1225DX

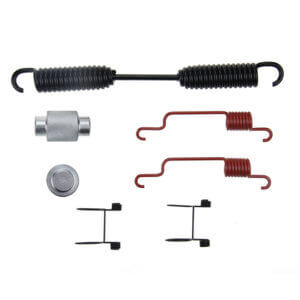

Eaton 16.5 extended service brake second generation WL4709E-12

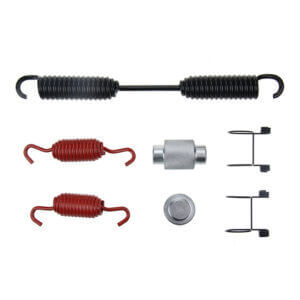

Eaton 16.5 extended service brake first generation WL4709E

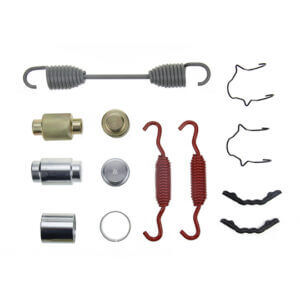

Meritor 15″ front Q Plus brake WL4702Q
Meritor 16 1/2 Q and Q Plus brake WL4515Q-3A

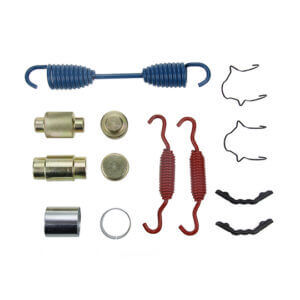

Fruehauf Pro-Par 16.5 XEM 3″ brake heavy duty spring WL4515F-3A

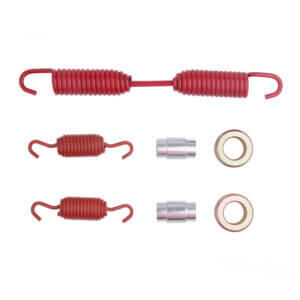

Eaton 16.5″ single anchor pin brake WL4311E

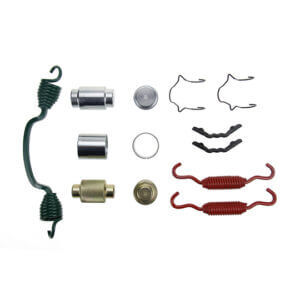

Rockwell 16.5 Steer axle brake WL1657QM

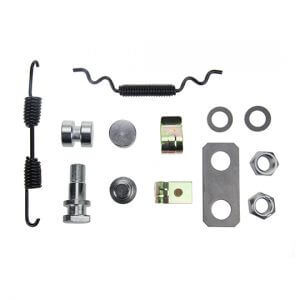

Rockwell 15″ front Q brake complete kit WL1308Q
Technical Insight: 3 Main Types of Brake Shoes
Identifying specific brake shoe designs is critical for selecting the correct hardware kit for fleet maintenance or wholesale inventory.
Technical Guide
Leading-Trailing Shoe Design
Commonly used on rear axles of light-duty trucks. The "leading" shoe is self-energizing by rotation, while the "trailing" shoe is pushed away.
Maintenance Note: Our repair kits ensure both shoes maintain balanced tension for even stopping power.
Duo-Servo (Self-Energizing)
Standard in medium-duty applications. Force from the primary shoe transfers to the secondary shoe, significantly increasing braking force.
Maintenance Note: Winlong’s Six Sigma quality springs are tested to 1,000,000 cycles to prevent brake drag.
Two-Leading Shoe Design
Found on front wheels of heavy-duty trucks. Uses two leading shoes actuated by individual cylinders for maximum forward braking force.
Maintenance Note: Our kits feature heat-treated anchor pins and rollers for high-torque applications.
Applications
Complete brake hardware solutions engineered for diverse commercial and industrial fleet operations.
Long-Haul Trucking
Class 7 & 8 over-the-road fleets requiring extended service intervals and consistent brake performance.
Fleet Management
Municipal transit buses, school buses, and commercial delivery fleets with high-mileage maintenance schedules.
Vocational Trucks
Dump trucks, concrete mixers, refuse haulers — severe duty applications requiring reinforced hardware.
Aftermarket Distribution
Wholesale parts distributors serving independent repair shops and regional fleet service centers.
