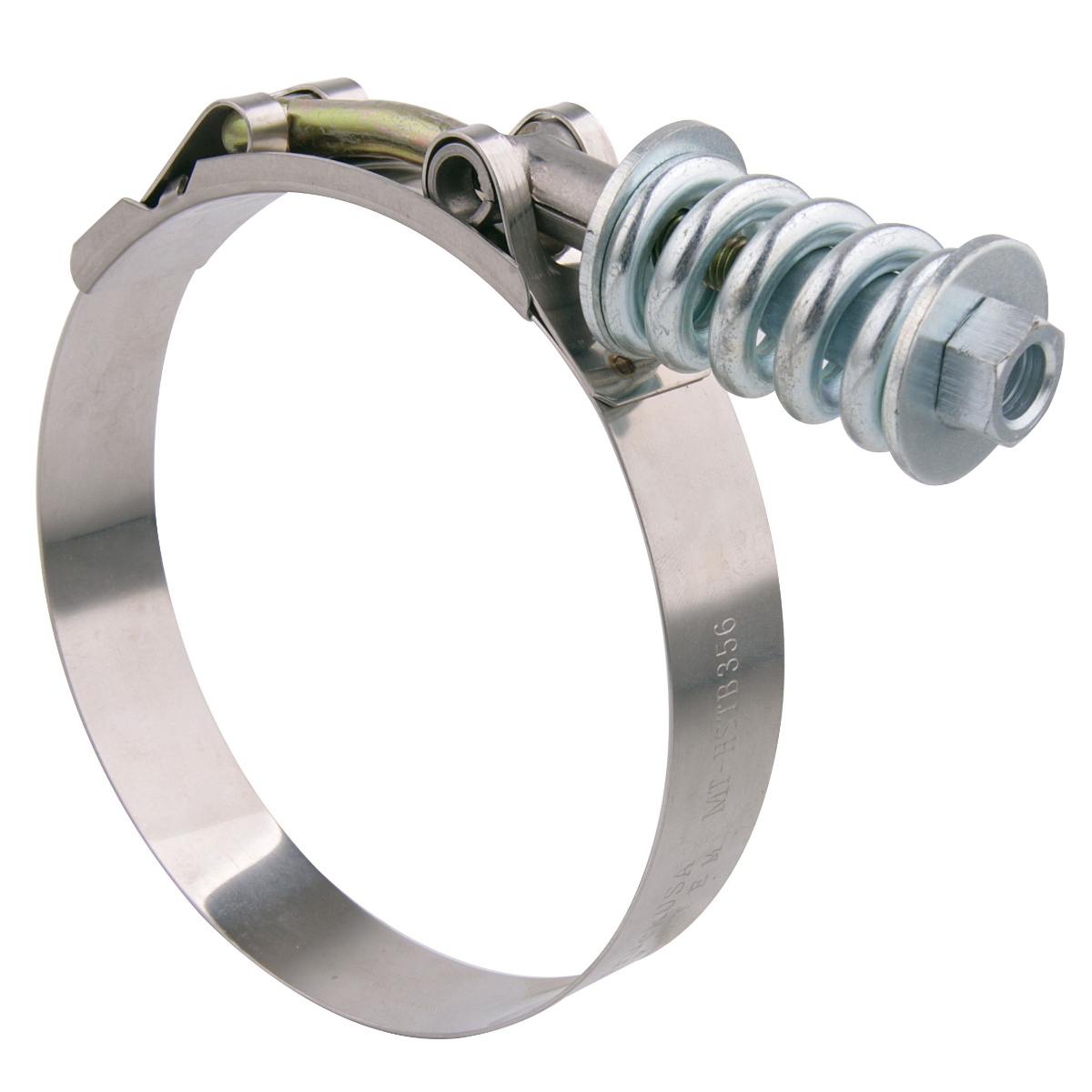

T-bolt Clamps
T-Bolt Hose Clamps

T-bolt Clamps

Winlong’s T-Bolt Hose Clamps are the ultimate solution for high-pressure and high-vibration applications. Unlike standard worm gear clamps, the T-bolt design provides superior tensile strength and a 360-degree uniform seal. These heavy-duty clamps are engineered for critical connections in turbochargers, intercoolers, and high-pressure industrial fluid systems, ensuring a leak-proof fit even under extreme mechanical loads.
Band 3/4" band width 300 stainless steel
Bridge 300 stainless steel
REQUEST BATCH QUOTE
Technical Specifications Features Applications
SAE Part# Clamping Range Installation
Inch mm Torque
38 TB34HD-38 TB34S-38 TB34-38 2-1/16 2-3/8 52 60 9Nm
40 TB34HD-40 TB34S-40 TB34-40 2-1/8 2-7/16 54.1 62.0 9Nm
48 TB34HD-48 TB34S-48 TB34-48 2-3/8 2-11/16 60.5 68.3 9Nm
52 TB34HD-52 TB34S-52 TB34-52 2-1/2 2-13/16 63.5 71.4 9Nm
56 TB34HD-56 TB34S-56 TB34-56 2-5/8 2-15/16 66.8 74.7 9Nm
60 TB34HD-60 TB34S-60 TB34-60 2-3/4 3-1/16 69.9 77.7 9Nm
64 TB34HD-64 TB34S-64 TB34-64 2-7/8 3-3/16 73.2 81.0 9Nm
72 TB34HD-72 TB34S-72 TB34-72 3-1/8 3-7/16 79.5 87.4 9Nm
76 TB34HD-76 TB34S-76 TB34-76 3-1/4 3-9/16 82.6 90.4 9Nm
80 TB34HD-80 TB34S-80 TB34-80 3-3/8 3-11/16 85.9 93.7 9Nm
88 TB34HD-88 TB34S-88 TB34-88 3-5/8 3-15/16 92.2 100.1 9Nm
92 TB34HD-92 TB34S-92 TB34-92 3-3/4 4-1/16 95.3 103.1 9Nm
108 TB34HD-108 TB34S-108 TB34-108 4-1/4 4-9/16 108 115.8 9Nm
116 TB34HD-116 TB34S-116 TB34-116 4-1/2 4-13/16 114.3 122.2 9Nm
124 TB34HD-124 TB34S-124 TB34-124 4-3/4 5-1/16 120.7 128.5 9Nm
132 TB34HD-132 TB34S-132 TB34-132 5 5-5/16 127 134.9 9Nm
148 TB34HD-148 TB34S-148 TB34-148 5-1/2 5-13/16 139.7 147.6 9Nm
156 TB34HD-156 TB34S-156 TB34-156 5-3/4 6-1/16 146.1 153.9 9Nm
164 TB34HD-164 TB34S-164 TB34-164 6 6-5/16 152.4 160.3 9Nm
172 TB34HD-172 TB34S-172 TB34-172 6-1/4 6-9/16 158.8 166.8 9Nm
180 TB34HD-180 TB34S-180 TB34-180 6-1/2 6-13/16 165.1 173.0 9Nm
188 TB34HD-188 TB34S-188 TB34-188 6-3/4 7-1/16 171.5 179.3 9Nm
208 TB34HD-208 TB34S-208 TB34-208 7-3/8 7-11/16 187 195 9Nm
258 TB34HD-258 TB34S-258 TB34-258 8-15/16 9-1/4 227 235 9Nm
298 TB34HD-298 TB34S-298 TB34-298 10-3/16 10-1/2 259 267 9Nm
326 TB34HD-326 TB34S-326 TB34-326 11-1/16 11-3/8 281 289 9Nm
346 TB34HD-346 TB34S-346 TB34-346 11-11/16 12 297 305 9Nm

  • High-Torque Fastening: The robust T-bolt and nylon-insert lock nut design allows for significantly higher torque levels than standard clamps.

  • 360° Uniform Sealing: Provides even radial pressure distribution, protecting hoses from damage while ensuring a tight, consistent grip.

  • Floating Bridge Design: Features a wide, high-strength bridge that prevents hose extrusion and maintains a secure seal under high pressure.

  • Corrosion Resistance: Available in multiple stainless steel grades (W2/W4/W5) to handle everything from standard industrial use to salt-water environments.

  • Heavy-Duty Automotive: Essential for turbocharger piping, intercooler systems, and high-pressure coolant lines in diesel engines.

  • Industrial Machinery: Used in hydraulic systems, pumping stations, and high-pressure air filtration units.

  • Agriculture & Construction: Ideal for heavy-duty tractors, earthmoving equipment, and irrigation mainlines.

  • Marine & Offshore: 316 Stainless Steel versions are the industry standard for marine exhaust systems and below-waterline piping (Marine Grade).

Quality Inspection

Why Partner With Us?

At Winlong, we believe in precision engineering that supports your project's integrity. Our mission is to provide high-performance metal components that are durable, reliable, and compliant.

  • ✓
    100% Independent Automation & Stability
  • ✓
    Expert Engineering & "Lean Manufacturing"
  • ✓
    Comprehensive Material & Size Range
  • ✓
    Global Distribution & Sales Support

Related Products

Mini Worm Drive Clamps

Mini Worm Drive Clamps

 Pipe Clamps

Pipe Clamps

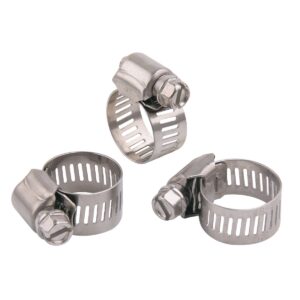

 Marine Grade Hose Clamps
