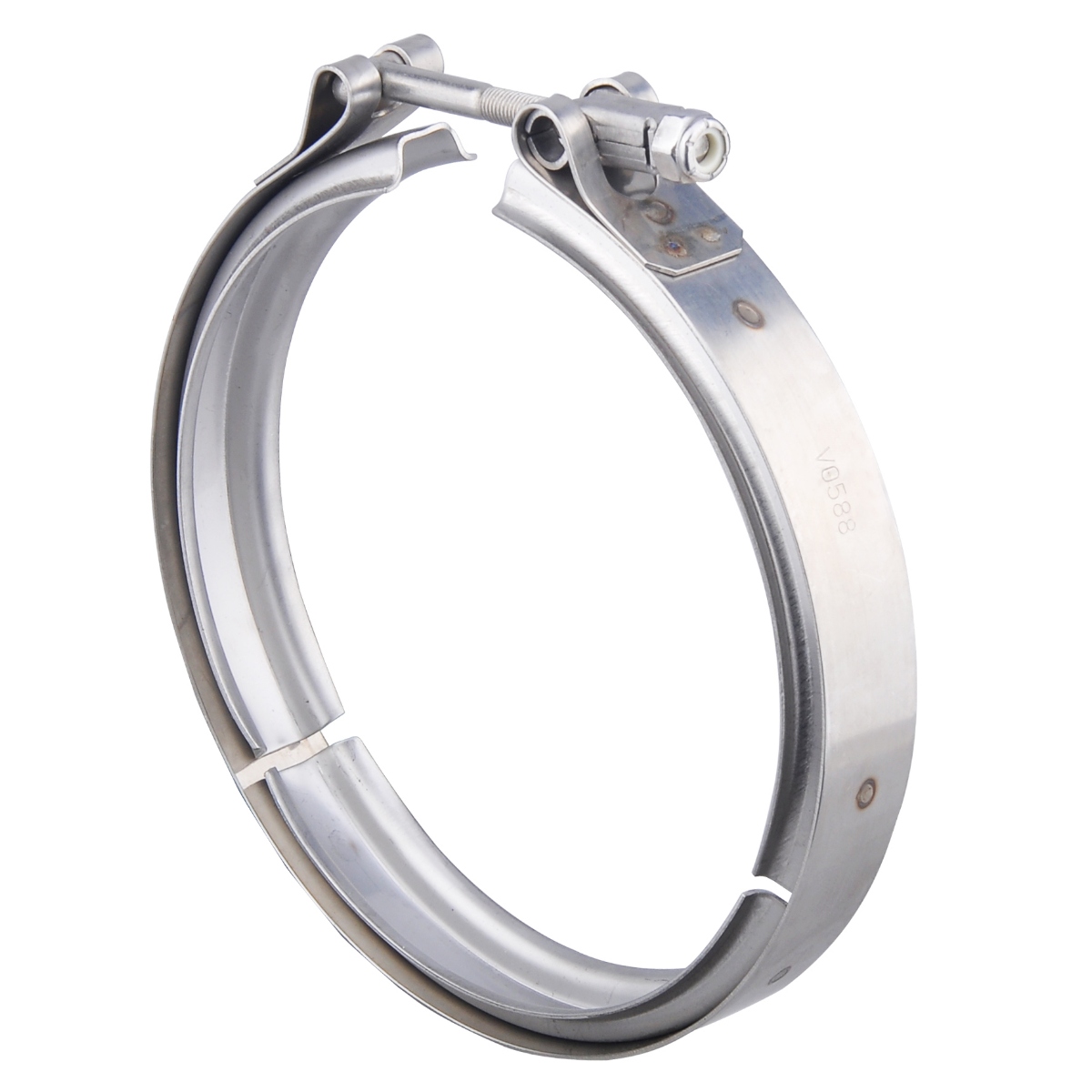

V-Band Clamps
| Part# | Nominal Dia.(In.) |
V-band | ||||
| A | B | C | D | E | ||
| V0388 | 3.88 | 0.050 | 0.400 | 0.281 | 0.040 | 0.866 |
| V0425 | 4.25 | 0.050 | 0.400 | 0.281 | 0.040 | 0.866 |
| V0475 | 4.75 | 0.050 | 0.400 | 0.281 | 0.040 | 0.866 |
| V0494 | 4.94 | 0.060 | 0.181 | 0.281 | 0.035 | 0.748 |
| V0525 | 5.25 | 0.050 | 0.262 | 0.141 | 0.035 | 0.748 |
| V0588 | 5.88 | 0.050 | 0.400 | 0.281 | 0.040 | 0.866 |
-
Self-Aligning Connection: The V-shaped inner profile ensures the flanges are perfectly aligned and centered as the clamp is tightened.
-
Rapid Assembly & Disassembly: The single-bolt T-Bolt fastening system allows for quick maintenance, making it ideal for systems that require frequent cleaning or inspection.
-
Extreme Temperature & Pressure Resistance: Built to withstand the high thermal loads of exhaust and turbocharger systems without compromising seal integrity.
-
Compact Footprint: Offers a much smaller and lighter profile compared to traditional bolted flange connections, saving critical space in engine bays and industrial skids.
-
Automotive & Racing: High-performance exhaust systems, turbocharger outlets, and downpipes.
-
Industrial Equipment: Connection of pump housings, filtration units, and industrial centrifugal blowers.
-
Aerospace & Power Gen: Used in turbine housing connections and high-temperature ducting.
-
Marine & Offshore: 316 Stainless Steel versions for marine engine exhaust and cooling water intake systems (Marine Grade).
