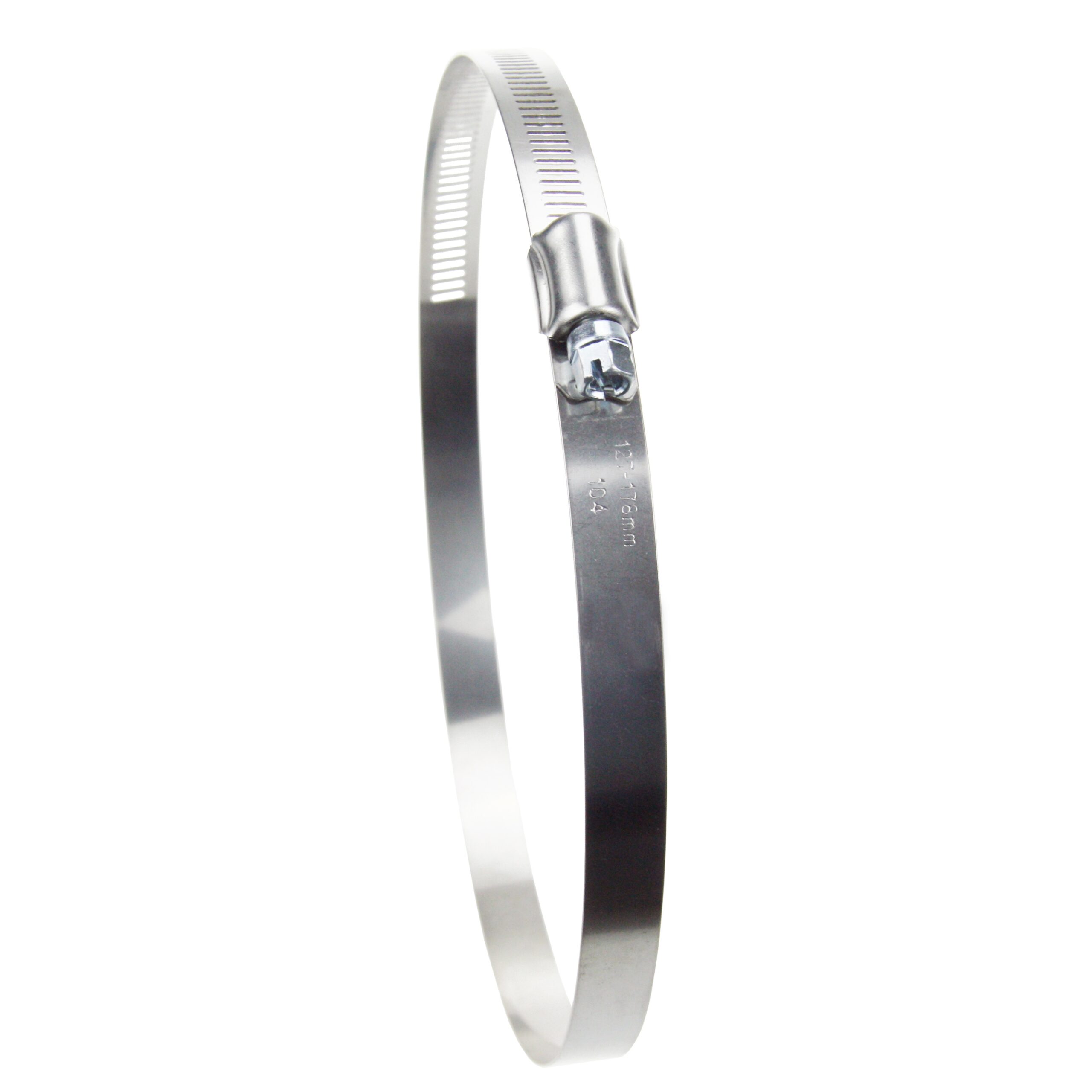

High Torque Clamps
High Torque Hose Clamps

High Torque Clamps

Winlong’s High Torque Worm Drive Hose Clamps are designed for heavy-duty applications where standard clamps simply aren't enough. Featuring a non-perforated band and a reinforced housing, these clamps provide exceptional radial distribution of pressure and extremely high sealing force. They are the ideal solution for high-pressure silicone hoses and industrial piping that require a reliable, leak-proof seal under extreme tension.
Band 5/8" band width / 9/16" band width / 1/2" band width 300 stainless steel
Screw 5/16" hex head screw 300 stainless steel
Housing 300 stainless steel
REQUEST BATCH QUOTE
Technical Specifications Features Applications
SAE Part# Clamping Range Fits Hose
Inch mm Inch mm
212 HD58-212 1-1/4 2-1/8 32 54 1 1-1/2 25 38
262 HD58-262 1-3/4 2-5/8 45 67 1-1/2 2 38 51
312 HD58-312 2-1/4 3-1/8 57 79 2 2-1/2 51 64
362 HD58-362 2-3/4 3-5/8 70 92 2-1/2 3 64 76
412 HD58-412 3-1/4 4-1/8 83 105 3 3-1/2 76 89
462 HD58-462 3-3/4 4-5/8 95 117 3-1/2 4 89 102
512 HD58-512 4-1/4 5-1/8 108 130 4 4-1/2 102 114
562 HD58-562 4-3/4 5-5/8 121 143 4-1/2 5 114 127
612 HD58-612 5-1/4 6-1/8 133 155 5 5-1/2 127 140
662 HD58-662 5-3/4 6-5/8 146 168 5-1/2 6 140 152
712 HD58-712 6-1/4 7-1/8 159 181 6 6-1/2 152 165
762 HD58-762 6-3/4 7-5/8 172 194 6-1/2 7 165 178
812 HD58-812 7-1/4 8-1/8 184 206 7 7-1/2 178 191
862 HD58-862 7-3/4 8-5/8 197 219 7-1/2 8 191 203
912 HD58-912 8-1/4 9-1/8 210 232 8 8-1/2 203 216

  • Solid Band Design: The non-perforated band protects soft hoses (like silicone) from being extruded or sheared, extending the life of the connection.

  • High Tightening Torque: Enhanced screw and housing design allows for significantly higher torque compared to standard worm gear clamps.

  • Safety Edges: Rolled-up band edges ensure that there are no sharp surfaces to cut the hose during installation or high-vibration use.

  • Extreme Durability: Precision-manufactured to withstand high mechanical loads and harsh environmental conditions.

  • Automotive & Racing: High-pressure turbocharger (intercooler) hoses and cooling systems.

  • Heavy Construction: Hydraulic lines and heavy-duty radiator hoses for earthmoving equipment.

  • Agriculture: Large-scale irrigation systems and high-pressure fluid delivery.

  • Marine & Offshore: 316 Stainless Steel versions for critical engine room piping and saltwater environments.
