Lined Clamps
Lined Hose Clamps

Lined Clamps

Winlong’s Lined Hose Clamps are specifically designed for use with soft-surface hoses, such as silicone and rubber. The integrated liner extends under the gear mechanism and perforated band to prevent hose extrusion and shearing. This design ensures a consistent 360-degree seal while protecting the structural integrity of your high-value hoses in demanding environments.
Band 1/2" band width 300 stainless steel
Screw 5/16" hex head screw 300 stainless steel, plated carbon steel
Housing 300 stainless steel
REQUEST BATCH QUOTE
Technical Specifications Features Applications
SAE Part# Clamping Range Fits Hose
Inch mm Inch mm
12 L12-12 7/8 1-1/4 22 32 3/4 3/4 19 19
16 L12-16 1 1-1/2 26 38 3/4 1 19 25.4
20 L12-20 1-1/8 1-3/4 29 44 7/8 1-1/4 22 31.7
24 L12-24 1-1/4 2 32 51 1 1-1/2 25.4 38
28 L12-28 1-5/16 2-1/4 33 57 1-1/8 1-3/4 28.5 44
36 L12-36 1-13/16 2-3/4 46 70 1-1/2 2-1/4 38 57
40 L12-40 2-1/16 3 52 76 1-3/4 2-1/2 44 38
52 L12-52 2-13/16 3-3/4 72 95 2-1/2 3-1/4 38 82.5
60 L12-60 3-5/16 4-1/4 84 108 3-1/8 3-3/4 49 95
64 L12-64 3-9/16 4-1/2 91 114 3-1/4 4 82.5 101.6
72 L12-72 4-1/16 5 103 127 3-3/4 4-1/2 95 114.3

  • Integral Liner Protection: The smooth inner liner covers the band perforations, protecting soft hoses from being cut or forced through the slots during tightening.

  • Even Pressure Distribution: Provides a uniform seal around the entire circumference of the hose, eliminating leak paths.

  • Corrosion Resistant Material: Available in high-grade stainless steel options for long-term durability in automotive and industrial settings.

  • Precision Tightening: Equipped with a rugged housing and a smooth-running screw for high-torque applications without slipping.

  • Automotive & Racing: Critical for silicone radiator hoses, turbocharger bypass valves, and vacuum lines.

  • Heavy Duty Trucks: High-temperature cooling systems and charge air cooler (CAC) connections.

  • Construction & Agriculture: Protection for soft rubber hoses in engine management and fluid transport.

  • Marine: Ideal for marine engine wet exhaust and fuel systems requiring extra hose protection (316 Grade).

Quality Inspection

Why Partner With Us?

At Winlong, we believe in precision engineering that supports your project's integrity. Our mission is to provide high-performance metal components that are durable, reliable, and compliant.

  • ✓
    100% Independent Automation & Stability
  • ✓
    Expert Engineering & "Lean Manufacturing"
  • ✓
    Comprehensive Material & Size Range
  • ✓
    Global Distribution & Sales Support

Related Products

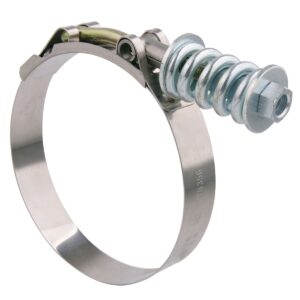

T-bolt Clamps

T-bolt Clamps

 Constant Tension Clamps

Constant Tension Clamps

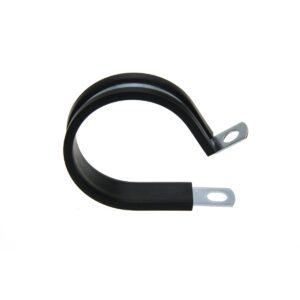

 Pipe Clamps
